QLabs Virtual Rotary Servo

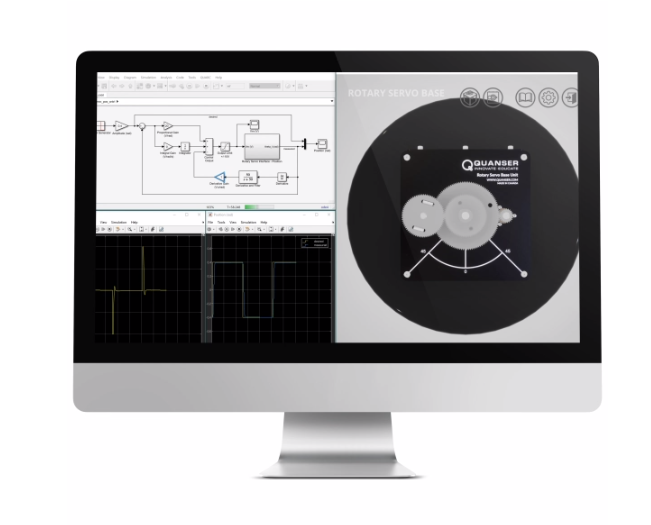

Same as the physical Rotary Servo Base Unit, the virtual system features a DC motor that drives a smaller pinion gear. This gear is fixed to a larger middle gear that rotates on the load shaft. The position of the load shaft is measured using a high-resolution optical encoder or a potentiometer.

Brand

Quanser
Compare
Add to wishlist
Description

“QLabs Virtual Rotary Servo is a fully instrumented, dynamically accurate digital twin of a classic Rotary Servo Base Unit system. It behaves in the same way as the physical hardware and can be measured and controlled using MATLAB®/Simulink® and other development environments. With QLabs Virtual Rotary Servo, you can enrich your lectures and activities in traditional labs, or bring credible, authentic model-based lab experiences into your distance and online control systems course.

QLabs Virtual Rotary Servo is available as a 12-month, multi-seat subscription. The platform is compatible with the physical Rotary Servo Base Unit curriculum, which covers modelling, position, and speed control topics.

”
