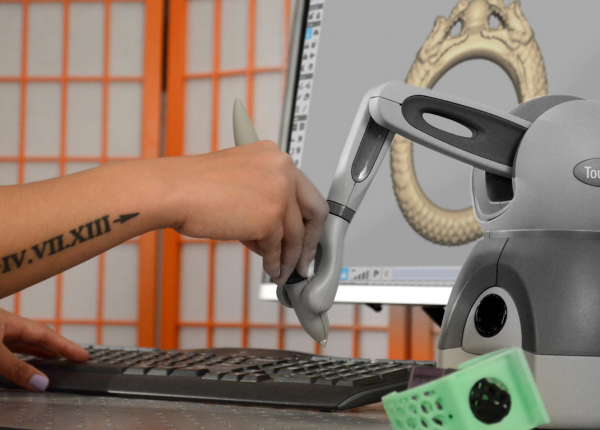

Touch X haptics

With greater accuracy, the Touch X delivers the very best for professional designers and artists in terms of accuracy and ability to develop fine details. This haptic device delivers optimal stiffness and a high exertable force to assist with the process of design and production.

Brand	3DSystems

Brand

3DSystems

Description

Specifications

Workspace ~6.4 W x 4.8 H x 4.8 D in > 160 W x 120 H x 120 D mm

Range of motion Hand movement pivoting at wrist

Nominal position resolution > 1100 dpi ~0.023 mm

Maximum exertable force and torque at nominal position (orthogonal arms) 1.8 lbf/7.9 N

Stiffness
x-axis > 10.8 lb/in (1.86 N/mm)
y-axis > 13.6 lb/in (2.35 N/mm)
z-axis > 8.6 lb/in (1.48 N/mm)

Force feedback (3 Degrees of Freedom) x, y, z

Position sensing/input x, y, z (digital encoders) [Roll, pitch, yaw (magnetic absolute position sensor, 14-bit precision)]

Interface USB 2.0

Compatible software: OpenHaptics (3DSystems) H3DAPI (SenseGraphics) Chai3D ForceDimensions
