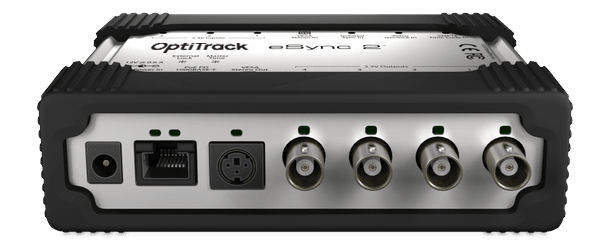

Synchronize Ethernet cameras to almost any signal or source with the eSync 2. Cameras can be in sync to sources such as a professional video Genlock signal, and can also be triggered to record from general purpose inputs and software commands.
Use the sync output signal or trigger with a DAQ for biomechanical force plate data alignment. Highly accurate frame timing can also be achieved with SMTPE Time Code for ease in editing and logging.
One eSync 2 per motion capture system is all that is needed, and all cameras align within a very precise ~+/-5µs of the input signal. The PoE Ethernet connection allows an eSync 2 to be located almost anywhere in a lab or studio, making it easy to connect with/to source signals.
With convenient output signals that can mirror most inputs, you can place the eSync 2 in the middle of an existing setup, or convert signal types for greater system flexibility.
Automatically measures and reports the frequency of signals connected to its inputs. This enables fast and easy confirmation inputs have the frequency expected.
Genlock sync in
Genlock your OptiTrack Ethernet cameras to an external video source via SD Black Burst or HD Tri-Level analog input. All modern SD and HD sync inputs are accepted for easy integration in professional studio environments. Genlock is ideal for syncing mocap data to live action media, including on-set capture, camera tracking, reference video, and head-mounted face mocap cameras.
