QUBE – Servo 3

THE QUICKEST PATH TO PRACTICAL CONTROLS

The Qube Servo 3 is the fastest and most efficient way to bring modern, hands-on learning experiences into your Control Systems course. The system is equipped with a high-quality direct-drive brushed DC motor, two encoders, an internal data acquisition system, and an amplifier. Connect with USB to a Windows PC using MATLAB Simulink or Python.

Brand	Quanser

Brand

Quanser

Description

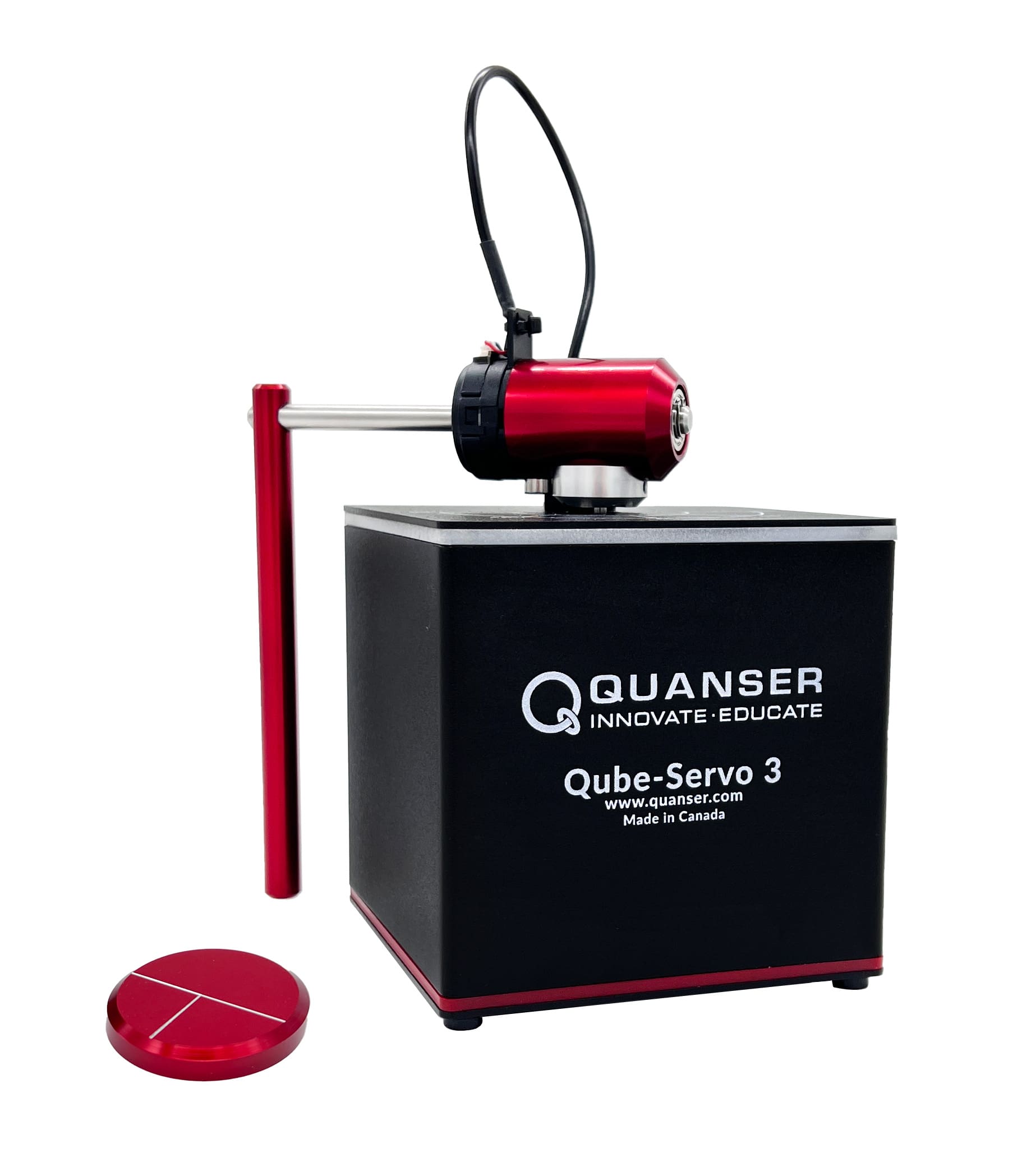

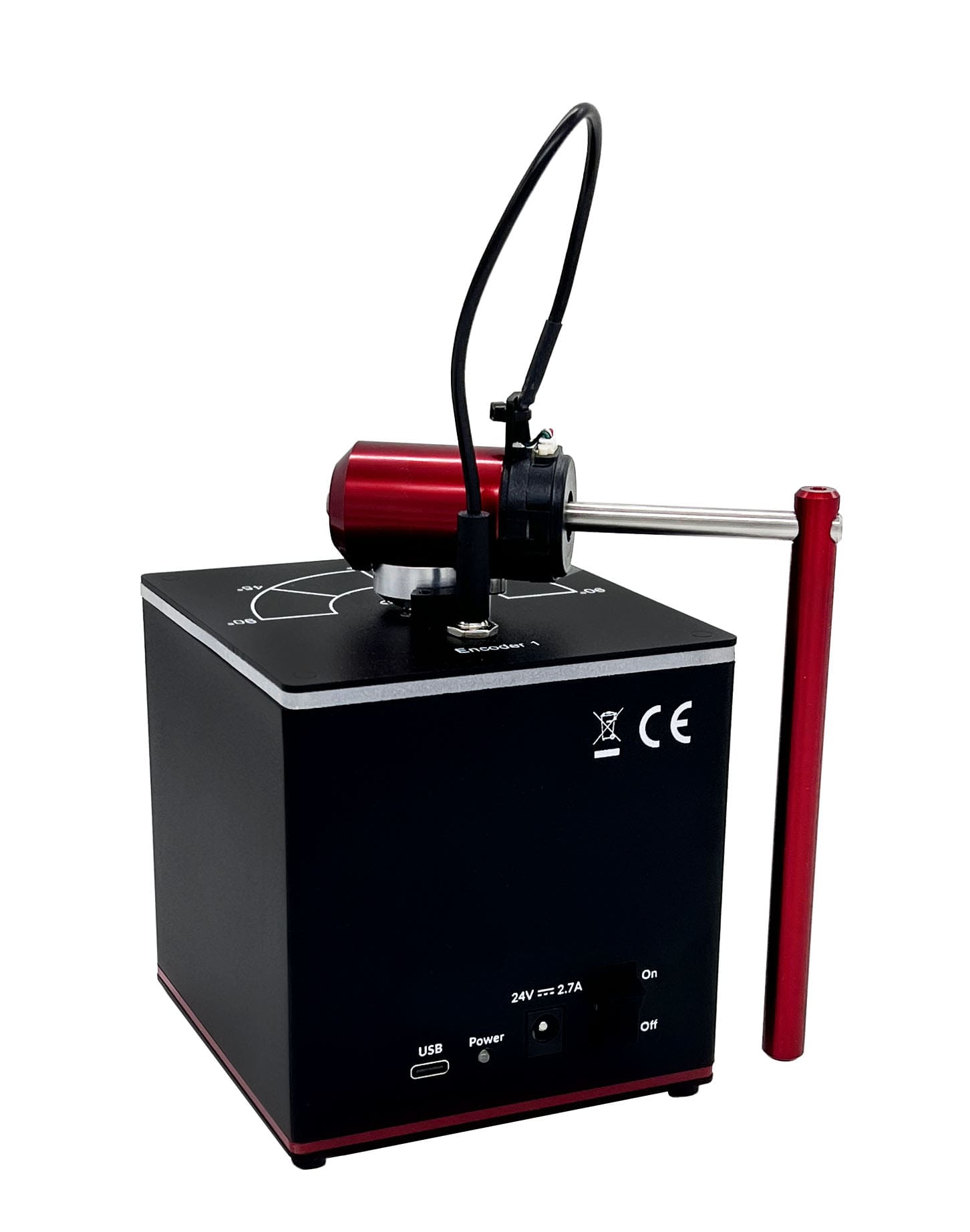

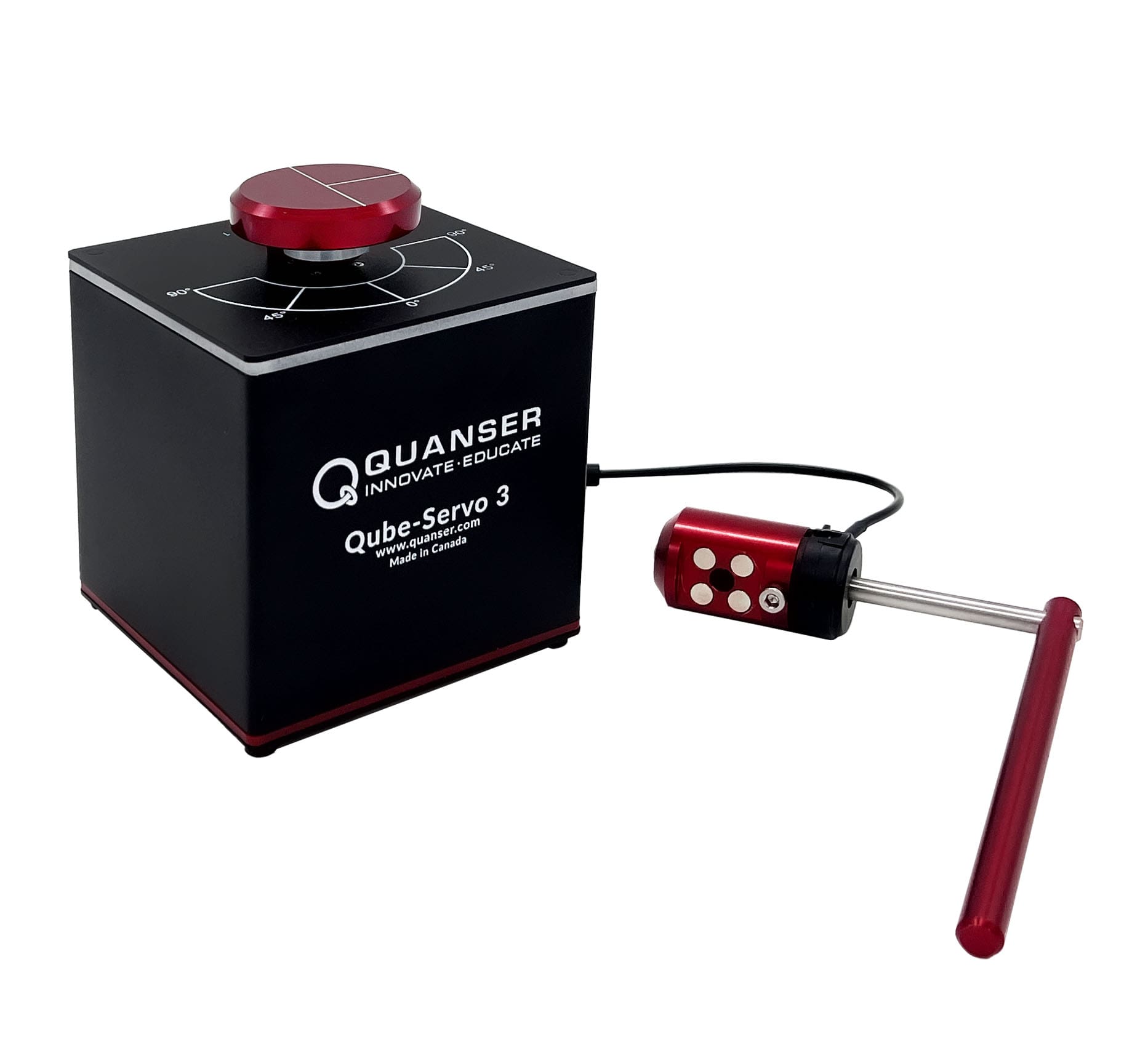

Qube-Servo 3 comes with a quick-connect inertia disk and an inverted pendulum module. You can also design and 3D print your own module to expand the scope of the experiment or create an engaging student project. Take advantage of the comprehensive ABET-aligned course material for MATLAB® Simulink®, or design and validate your own controllers. With additional language support in Python and C/C++, new features include the ability to disable deadband compensation to directly model and control the DC motor.

Features

Safe: Built-in motor stall and thermal protection
Comprehensive Courseware: ABET-aligned courseware mapped to popular control engineering textbooks
Options: Inertia disk and pendulum attachment included

Specification

Interface	USB
Dimensions (W x H x D)	10.2 cm x 10.2 cm x 11.7 cm
Weight	1..083 kg
Pendulum length (pivot to tip)	9.5 cm
DC motor encoder resolution (quadrature mode)	2,048 counts/revolution
Pendulum module encoder resolution (quadrature mode)	2,048 counts/revolution
DC motor nominal voltage	24 V
DC motor nominal current (no load)	0.016 A
DC motor nominal speed (no load)	5400 RPM
Current sense	12-bit, with 16 sample PWM synchronized digital filtering
Encoder	2 x 24-bit
Digital tachometer	2 x 32-bit with 13.8ns resolution
