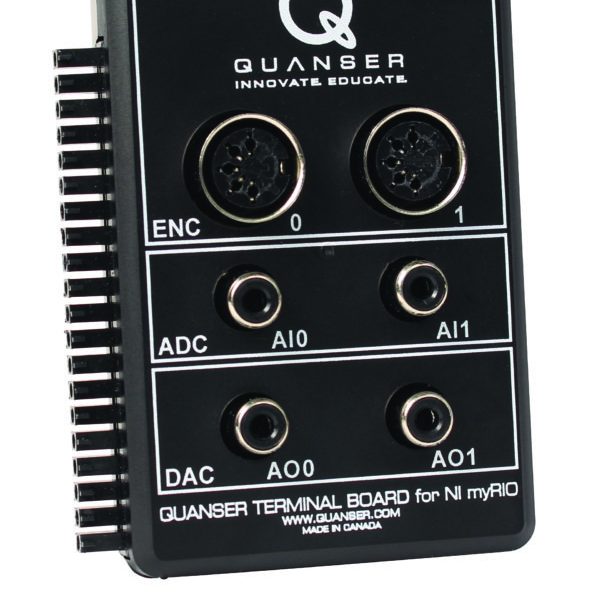

Quanser Terminal Board for NI myRIO
Connect Quanser experiments to your National Instruments myRIO

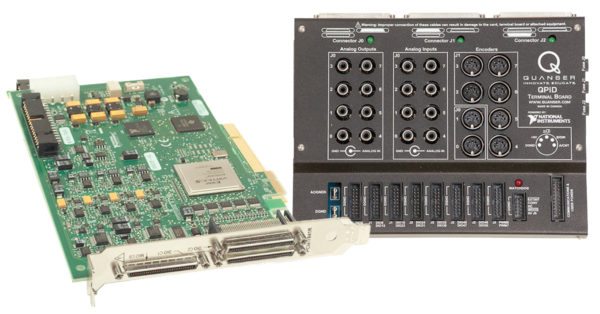

QPIDe Data Acquisition Device
Same as the physical Rotary Servo Base Unit, the virtual system features a DC motor that drives a smaller pinion gear. This gear is fixed to a larger middle gear that rotates on the load shaft. The position of the load shaft is measured using a high-resolution optical encoder or a potentiometer.
